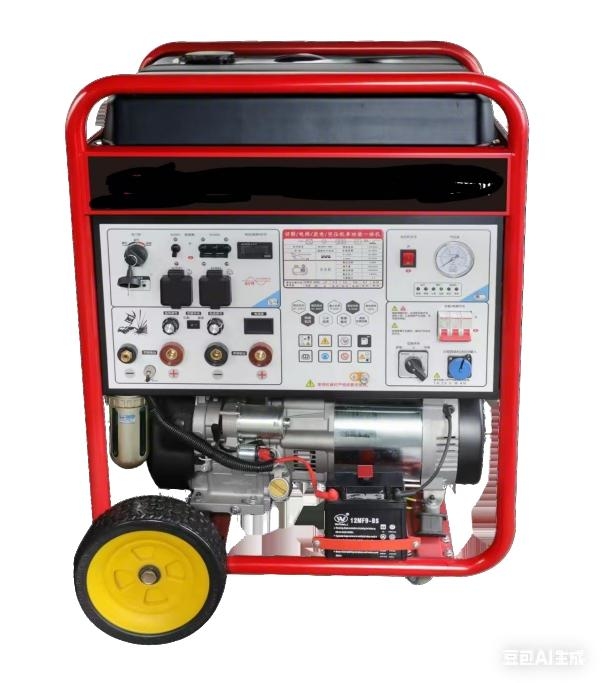

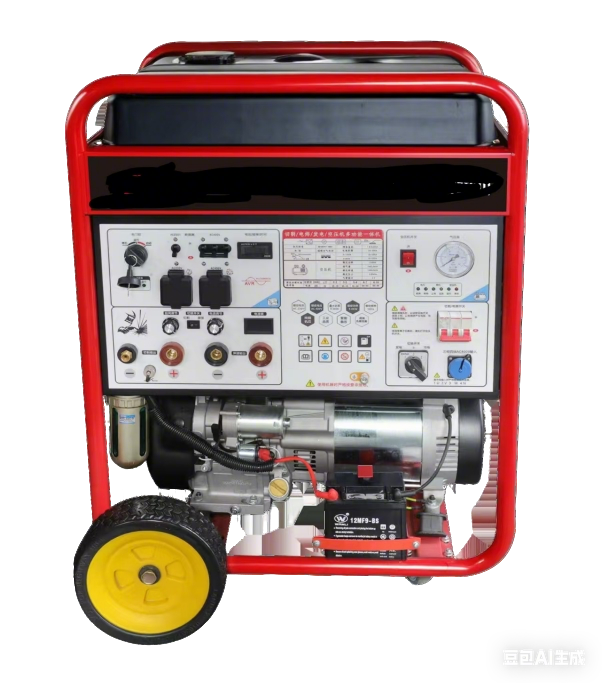

| Specification & Qutation of WAGPC500 Five-in-one Machine | ||
| Specification sheet | Made on 27th,Feb,2026 | |
| Functions | Generator/DC battery charging/Welding/Air compressing/Plasma cutting | |
| Generating section | Rated OCV（V) | 220(AC) |
| Rated power（kw） | 6.0 | |
| Max.power（kw） | 6.5 | |
| Rated voltage(V) | 220/110 | |
| DC battery charging | 12V 8.3A DC output | |
| Welding section | Welding process | MMA/TIG(scratch) |
| Duty cycle(%） | 50% | |
| OCV（V) | 75（DC) | |
| Current range(A) | DC 50-200 | |
| Loaded voltage（V) | DC 22-28 | |
| AIR COMPRESSOR | Battery | 12V/14Ah/Free maintenance |
| Capacity(L) | 20（10*2） | |
| Stage | 1.0 | |
| Flow | 100L/min | |
| Plasma cutting（built-in, 230V power) | Pressure range | 0.6-0.8Mpa |
| Duty cycle at full power output | 0.5 | |
| Current range(A) | 10-50A | |
| Engine | Rated current/voltage(A/V) | 7.1 |
| Engine model | CH440(Kohler engine) | |
| Max.power/Speed(RPM) | 10.5/3600 | |
| Displacement(CC) | 429 | |
| Start method | Electric | |
| Whole set | Cutting thickness | 10-12mm low-carbon steel |
| Tank capacity(L) | 30 | |
| Protection class | IP23 | |
| Outline size(mm) | 850.5*583*780 | |
| Carton packing size | 860*600*800 | |
| Net/gross weight(kg) | 168.5kg | |
| Start method:through drive | ||
| Generator:1.35KW/Single phase | ||
| Air compressor capacity:0.1m³/min | ||
| Pressure relief operation value:0.8 ±0.1 | ||
| Pressure relief starting value:0.6 ±0.1 | ||
| Safe valve operation value:0.9 ±0.1 | ||
| Volume of Air Storage Tank:20L/double tanks | ||
